In Ear Stick

HA00001141
  • Description
  • Specifications
  • Optional Accessories

Pro audio in-ear headphone amp en miniature for use on stage and in the studio

  • Switchable configuration either for balanced mono signals or unbalanced stereo signals
  • Input signal via NEUTRIK combo XLR/jack connector
  • Sturdy casing of aluminum profile with an inner frame and belt clip of spring steel
  • State-of-the-art electronic design with BURR BROWN active SMD audio components
  • Linear frequency response, 2x 100mW output power with minimum distortion, output impedance 1.5 ohms
  • Electronic limiter design in the input section to save your ears and the in-ear earphones
  • Power supply with two AAA cells (alkaline batteries or NiMH rechargeable batteries)
  • More than 10 hours operation with one set of batteries

Winner German Innovation Award 2018 !

Developed and manufactured in Germany



Dimensions (L x W x H) 140 x 30 x 35 mm
Weight: 120 g
Operation with 2x AAA batteries up to 10 hours
Combined XLR-jack input
1/8“ (3.5mm) headphones output
Output: max. 2 x 100 mW @ 16 ohms
Impedance: 1.5 ohms

Developed and manufactured in Germany


Stereo adaptor cable XLR male to 2x XLR female

HA00001142

Mini Body Pack 2

HA00001128
  • Description
  • Specifications
  • Optional Accessories

In Ear Body Pack with volume control (passive)

  • Equipped with an additional mono switchover, the new Mini Body Pack 2 can also be used for mono or balanced outputs.
  • Fixed with a belt clip, it is a brilliant tool for use with headphone or in-ear earphones on stage or in the studio.
  • The cable coming from the headphone amp is plugged in the bottom side of the Body Pack and is locked to avoid that it is inadvertently pulled out.
  • The Mini Body Pack 2 has a combined XLR and ¼“ (6.3mm) jack stereo input.
  • The 1/8“ (3.5mm) jack output for the headphone or the in-ear earphones as well as a passive volume control are at the top of the unit.
  • Sturdy and roadworthy design: aluminum casing, stainless steel belt clip, Neutrik sockets.
  • The high-quality volume control is very durable, made of plastic with fine rubber cover and has 41 detent positions
Dimensions LxWxH: 95 x 30 x 30 mm
Weight: 0.085 kg
Mono - stereo change-over switch
Neutrik combo input XLR & ¼“ (6.3mm) jack
Output: 1/8“ (3.5mm) stereo jack for in-ear earphones
Volume control: (yes) passive stereo volume control

Developed and manufactured in Germany

Stereo adaptor cable XLR male to 2x XLR female

HA00001142

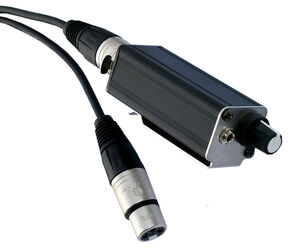

Mini Body Pack XLR

HA00001125 (version with XLR input)

  • Description
  • Specifications
  • Optional Accessories

In Ear Body Pack with volume control (passive)

  • Fixed with a belt clip, it is a brilliant tool for use with headphone or in-ear earphones on stage or in the studio.
  • The cable coming from the headphone amp is plugged in the bottom side of the Body Pack and is locked to avoid that it is inadvertently pulled out.
  • The Mini Body Pack has an XLR input (HA00001125, suitable for the In Ear Amp 2, HA00001120 or In Ear Amp 8, HA00001123).
  • The 1/8“ (3.5mm) jack output for the headphone or the in-ear earphones as well as a passive volume control are at the top of the unit.
  • Sturdy and roadworthy design: aluminum casing, stainless steel belt clip, Neutrik sockets.
  • The high-quality volume control is very durable, made of plastic with fine rubber cover and has 41 detent positions.

Dimensions LxWxH: 95 x 30 x 30 mm
Weight: 0.085 kg
Input: XLR female
Output: 1/8“ (3.5mm) stereo jack for in-ear earphones
Volume control: (yes) passive stereo volume control

Developed and manufactured in Germany

Stereo adaptor cable XLR male to 2x XLR female

HA0001142

XLR Adaptor Cable for In Ear Stick / Mini Body Pack

HA00001142

Description

XLR Adaptor cable for IN EAR STICK / MINI BODY PACK
Stereo operation at two XLR aux-outputs of the mixing console.
Length 63“ (1.6m).

Hardwired In Ear Belt Pack

HA00001100
  • Description
  • Specifications
  • Optional Accessories

Wired, portable in-ear monitor system – our “classic” product!

Hard-wired headphone amp for those musicians whose instrument restrict their freedom of movement (keyboards, drums,
percussions, background vocals).

Two direct balanced XLR inputs (no special cable required, can also be connected asymmetrically)

  • Much better sound than with wireless in ear systems
  • Switch-over from stereo to mono-mix mode
  • 2 x 40mW output power with limiter
  • Control for volume and pan/mix
  • Sturdy and road-worthy design: aluminum casing, belt clip of stainless steel, Neutrik sockets
  • Mains connector (lockable) to connect an external DC mains adaptor (optional extra)
  • Power supply with 9V block battery (not included)
  • Hours of operation with alkaline battery approx. 12h, with rechargeable battery approx. 8h

Dimensions L x W x H (in mm):  127 x 82 x 30
Weight:  290 g
Input connectors:  2 Neutrik XLR jacks 3-pole, with interlock
Earphone connector:  1/8" (3.5mm) mini connector
Frequency response:  30 Hz - 20 KHz +/- 2 dB
Minimum impedance of earphones:  12 ohms per side
Input impedance:  15kohms
Nom. input level:  0dB - +4dB (limiter at +6dB)
Nom. input level balanced:  0 dBV
Max. input level balanced:  +4 dBV
Limit input level balanced:  from +5 dBV
Max output power at 20 ohms:  40 mW per channel
Max. operating current:  40 mA
Power supply:  9V block alkaline battery or 8.4V rechargeable battery NiMH
DC-input plug:  ext. input power DC 9V (pin +, ring -)
Operating time of battery:  approx. 8h with 270mAh rechargeable battery, approx. 12h with alkaline battery (depends on headphones volume)

Developed and manufactured in Germany

DC mains adaptor for Hardwired In Ear Belt Pack

HA00006010

100-240VAC- 9VDC 1A, with locking Switchcraft DC connector, cable 1.8 m (71") with Euro plug

DC Mains Adaptor for Hardwired In Ear Belt Pack 100-240V 1A / 9V

HA000060102

Suitable for HA00001100 and HA00001130

In Ear Body Pack XL

HA00001130
  • Description
  • Specifications
  • Optional Accessories
The Body Pack XL has the same functional principle as the Fischer Amps Hardwired In Ear Body Pack, but it includes an
additional Mic-In which allows to add-on a microphone signal to the stereo or mono mix received.

An additional feature for the microphone input is the parallel out which allows to loop the microphone signal.
The Body Pack XL is powered with a 9V battery or an additional mains adaptor (not included).
This Body Pack is a compact in ear solution not only for orchestra musicians who want to mix their own microphone signal
to the incoming in ear signal, but it is also an excellent tool for sound engineers to monitor microphone signals.

The integrated low-noise microphone preamp has standard features such as:
  • 48V phantom power
  • PAD switch to reduce the input signal by 20 dB
  • gain control from + 12 dB to + 60 dB
  • add-on low-cut at 70 Hz.

Dimensions L x W x H (in mm):  125 x 136 x 32
Weight:  approx. 430 g without battery
Input jacks:  3 Neutrik XLR 3-pole, with interlock
Output jack:  3.5mm / 1/8" mini jack stereo, 1 XLR Mic Link-Out
Frequency response:  30 Hz - 20 KHz +/- 2dB
Min. impedance of earphones:  12 ohms per side
Input impedance:  15kohms channel 1 and 2; 2 kOhms microphone input (with PAD switch = 15 kOhms)
Nom. input level balanced:  0 dBV (channel 1 and 2)
Max. input level balanced:  +4dBV (channel 1 and 2)
Limiting of the input signal:  from +5 dBV (channel 1 and 2)
Input level mic input:  -60 dB to +6 dB
Max output power into 20 ohms:  40 mW per channel
Max. operating current:  65 mA (with add-on phantom power 120-140 mA)
Power supply:  9V block alkaline battery or 8.4V rechargeable battery NiMH with min. 270 mAh
DC input:  Ext. input power DC 9V (pin +, ring -)
Operating time of battery:  Alkaline battery (500 mAh) approx. 7.5 hours, NiMH rechargeable battery (270 mAh) approx. 4 hours (depending on headphones volume)

Developed and manufactured in Germany

DC mains adaptor for Hardwired In Ear Belt Pack
HA00006010

100-240VAC- 9VDC 1A, with locking Switchcraft DC connector, cable 1.8 m (71") with Euro plug

Guitar In Ear Cable

HA0000112x
  • Description
  • Product Variants

The combination of a top-quality instrument cable and a balanced, three-core cable delivers the headphone signal directly to the Mini Body Pack.

Both cable coats are paired, but are electrically separated.

This allows to play the wired instrument and it provides the in-ear headphone signal just with one cable. The Mini Body Pack XLR with volume adjustment is included.

Cable available in lengths:
HAA0001121: 6m (19.7ft)
HAA0001122: 10m (32.8ft)

In Ear Amp 2

HA00001120
  • Description
  • Specifications

The Fischer Amps In Ear Amp 2: A high-quality headphone amp in 9.5” metal casing. Many in-ear monitoring applications do not require the use of wireless technology. Hard-wired in-ear systems offer many advantages: You save wireless frequency channels which can be used for other systems, wired systems provide more dynamics and better sound quality.

Combined with the Guitar In Ear Cable, the Fischer Amps In Ear Amp 2 is the ideal solution not only for guitar and bass guitar players who prefer to perform with wired equipment on stage. It is also perfect for keyboard players, drummers, orchestra musicians....



The In Ear Amp 2 contains a Class A MOSFET amplifier with enormous reserves and high-precision sound which provides high-end earphone sound. The amplifier‘s output capacity can be selected via a two-step switch. This allows to use the In Ear Amp 2 with low-impedance in-ear earphones as well as with high-impedance headphones.

Two balanced inputs with combined XLR/jack connector with link-through input (XLR-outputs)
Gain control to adjust the input signals
Additional stereo aux line-In at the front (jack)
Shaker Line Out for ext. bass shaker amplifier with switchable low-pass 80Hz/24 dB/oct.
Stereo, mono-mix and mono mode
Output to control a bass shaker amplifier
LED display for input signals
Brand new class A MOSFET headphone amp with limiter
Switchabe output power for low-impedance in ear earphones and headphones with higher impedance > 250 ohms
Two headphone Outs jack and XLR male to connect the Guitar InEar Cable
Sturdy 9.5“ casing with integrated switching power supply,
switchable voltage supply 115VAC or 250VAC
Ground-lift switch
Adaptor set to mount In Ear Amp in 19“ rack

Developed and manufactured in Germany

In Ear Amp 8

HA00001123
  • Description
  • Specifications

The perfect solution to provide up to eight musicians with an in-ear mix.

The half rack-space In Ear Amp 8 with eight XLR outputs is based on the Fischer Amps In Ear Amp 2. Musicians can control their volume individually with Fischer Amps Mini Body Packs with XLR input [HA00001125]. The In Ear Amp 8 allows short cable routes on stage and cabling with standard microphone cables. Thanks to the Class A MOSFET amplifier with switchable output power, the unit can be used with high-impedance headphones as well as with low-impedance in-ear earphones. The XLR inputs have parallel XLR outputs so that the signals can be looped-through to the next In Ear Amp.

Using the In Ear Amp 8 is a simple but effective way to provide a stereo mix for a great number of listeners - the optimum system for orchestras, studios, conference rooms and budget-conscious productions.

  • Two balanced inputs with combined XLR/jack connector with link-through input (XLR-outputs)
  • LED display for input signals
  • Brand new class A MOSFET headphone amp with limiter
  • Switchable output power for low-impedance in-ear earphones and headphones with impedance > 250 ohms
  • Sturdy 9.5“ casing with integrated switching power supply, switchable voltage supply 115VAC or 250VAC
  • Ground-lift switch
  • Adaptor set to mount In Ear Amp 8 in 19“ rack
Dimensions: L x W x H: 220 x 190 x 43 mm
Weight: 2.0 kg
Operating Voltage: 115V AC or 230V AC 50/60 Hz, switchable
Power Consumption: 18 W max.
Mains Connection: Euro power connector, 3-pole with gnd
Frequency Response: 20 Hz to 50 kHz +/- 1 dB

Power Headphone Amp (low level): max. 190mW, minimum impedance 12 ohms
max. 1.2 V RMS, 0.0026% THD at 1 kHz

Power Headphone Amp (high level): max. 400mW, minimum impedance 40 ohms
max. 4 V RMS, 0.0025% THD at 1 kHz

Limiter in Headphone Amp: yes (cannot be disabled, internal level +4 dB)
Input Connectors: 2 x combined XLR/jack, balanced, 0 dB input level
Outputs:               2 x XLR Link out
Headphone Outputs: 8 XLR male for XLR microphone cable or Guitar In Ear Cable

Developed and manufactured in Germany




In Ear Amp 8 & 8 Stk. Mini Body Pack "Set"

HA00001124

Includes: In Ear Amp 8 &
8 pcs. Mini Body Packs (XLR input version)

Description

The comprehensive package to provide in-ear signals for 8 musicians!
The perfect solution for orchestras, studio environment or for application in rehearsal situations.
